Eigenschaften

Technische Daten

Type: Vulcanizer

Condition: New

Video outgoing-inspection: Provided

Machinery Test Report: Provided

Marketing Type: New Product 2020

Warranty of core components: 1 Year

Core Components: PLC, Bearing, Gearbox, Motor, Gear

Voltage: 220V/380V

Dimension(L*W*H): by request

Warranty: 1 Year, 1 year

Key Selling Points: Competitive Price

Power (kW): 3.7 kW

Weight (KG): 20000 KG

Applicable Industries: rubber products making machinery

Showroom Location: None

Application: Rubber Products Making

price: Factory price

roll: cast cold alloy

finish: mirror finish

Heating: Oil /Steam

Weight: 20t

Power: 3.7kw

After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service

Local ServiceÂ Location: None

Zertifizierung: ISO

Grundinformation

Zertifizierung: ISO

Zahlung und Versand AGB

Supply Ability: 10 Set/Sets per Month

Produkt-Beschreibung

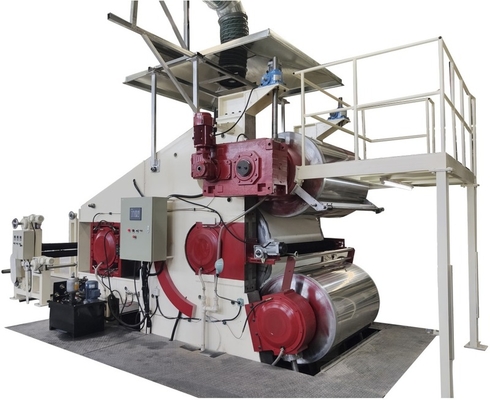

Rubber Tire Recycling Vulcanization Machine is suitable for continuous vulcanization of PVC and various kinds of rubber blanket, rubber sheet, light conveyer belt (circular belt) , printing blanket, rubber and plastic blanket, etc.

Specification	DLG800X1440	DLG1000X1640	DLG1500X1440	DLG1500X2000
Max products width (mm)	1200	1500	1200	1900
Max products thickness (mm)	10	10	12	15
Curing roll dia. (mm)	800	1000	1500	1500
Curing roll length (mm)	1440	1440	1440	2000
Auxiliary roll dia. (mm)	550	550	1000	1000
Steel belt width (mm)	1580	1580	1650	1950
Steel belt length (mm)	7700	7700	9800	15450
Steel belt thickness (mm)	1.2	1.2	1.9	1.9
Steel belt pressure (MPa)	10	18	25	25
Vulcanization pressure (MPa)	≤1	≤1	≤1	≤1
Vulcanization time (min)	1-80	1-80	1-80	1-80
Curing roll line velocity (m/min)	0.06-1.5	0.06-1.8	0.06-2.6	0.06-3.5
Vulcanization interval length (m)	1.89	2.36	3.53	3.53
Main motor power (kw)	1.5	2.2	5	7.5

AnHui SINCERE Machinery Co., Ltd.

---rubber machinery, plastic machinery, speed reducer & rubber products

Who we are:

SINCERE is a comprehensive enterprise dedicated to the rubber and plastic machinery industry, which integrates

R&D, manufacturing and after-sales service.The company has ten years of rubber machinery production experience.

With advanced technology, strong processing strength, first-class after-sales service , we win the trust of domestic and

foreign customers. The products not only have a large share in the domestic market, but are exported to Spain, the United

States, India, Vietnam, Sri Lanka, Germany and other countries

We serve the vast number of customers at home and abroad with the principle of "quality first, customer first". We advance

hand in hand to create a brilliant future.
